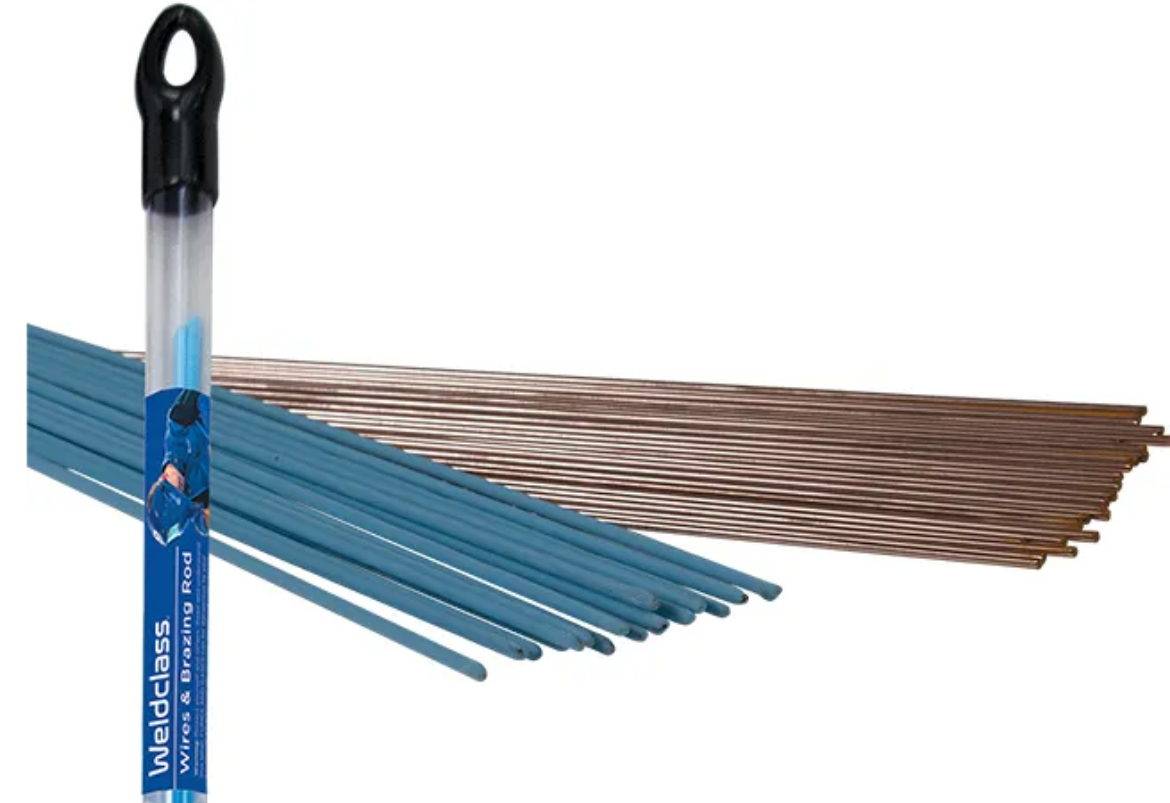

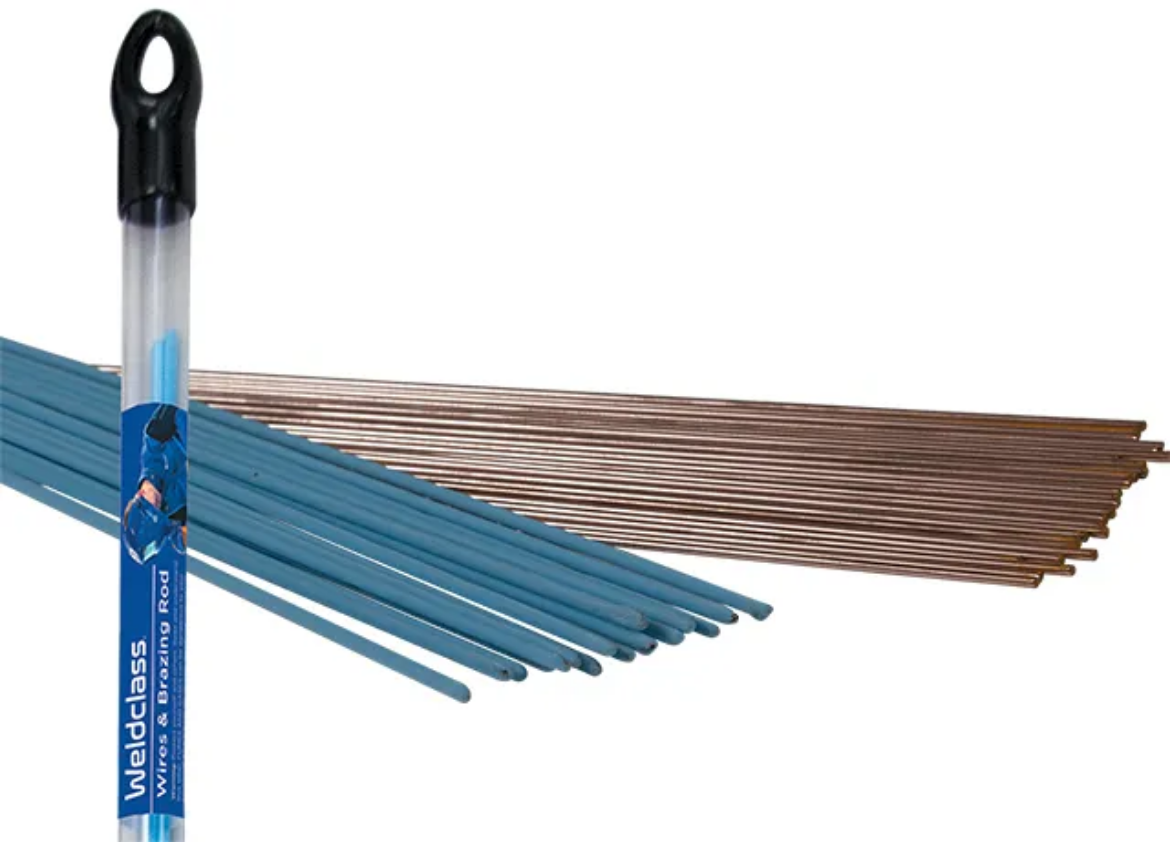

Brazing Rod - Silver 45%
Popular 45% silver brazing alloy rod for general purpose, high-strength brazing of all ferrous and non ferrous metals, including steel, stainless-steel, copper, brass, nickel, etc. High fluidity & rapid capillary flow, good choice where parts have close fit up. Melting Range (approx): 640-680°C.
Overview:
- General purpose silver brazing alloy
- For all ferrous and non-ferrous metals; steel, stainless-steel, copper, brass, nickel, etc
- High fluidity & rapid capillary flow, good choice where parts have close fit up
- High strength & ductility
- Good corrosion resistance
- Suitable for continuous service operating temperatures up to 200°C
- Melting Range (approx): 640-680°C
Common Applications:
- Production brazing and maintenance work
- HVAC & Refrigeration pipe joints requiring high bond
- Fire service fittings
- Used widely in marine applications due to corrosion & dezincification resistance
Specifications & Properties:
- Cadmium Free
- Classifications: AWS A5.8 BAG-5
- Melting Range (approx): 640-680°C
- Typical Composition: 45% Silver (Ag), 30% Copper (Cu), and 25% Zinc (Zn)
Not Suitable For:
