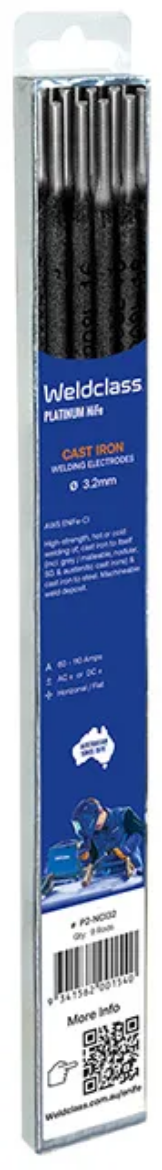

Electrodes - Cast Iron PLATINUM NiFe

Key Features:

• For hot or cold welding of cast to cast, or cast to steel
• High strength
• Available in blister handy-pack or 1kg re-usable pack
• Easy to use & suitable for low OCV (open circuit voltage) welding machines (>45V)

Application Information:

• Recommended for repair and reclamation of all standard grades of grey / malleable, nodular, SG & austenitic cast irons and some grades of meehanite cast iron
• Stronger and more resistant to solidification cracking than the pure nickel electrode types (such as Ni-Cl)
• Fully machinable weld deposits
• Applications include: machine bases, pipes, gear teeth, pump bodies, heavy machine sections, flanges and pulleys
• Suitable for hot or cold welding (with or without preheating). Note that preheating and postheating is recommended for best results, see Cast-iron welding guide for more details

Operating Information:

• Polarity: AC ± or DC ± (electrode + or -)
• Typical current range 3.2mm: 60-100A
• Minimum recommended OCV (open circuit voltage): 45V
• Ensure base material is clean.
• Use low current & keep short arc length.
• If welding restrained parts, use short staggered beads to minimise risk of cracking
• Avoid excessive current (heat) as this will increase risk of cracking

Classifications:

• Classification: AWS ENiFe-CL
