Description:

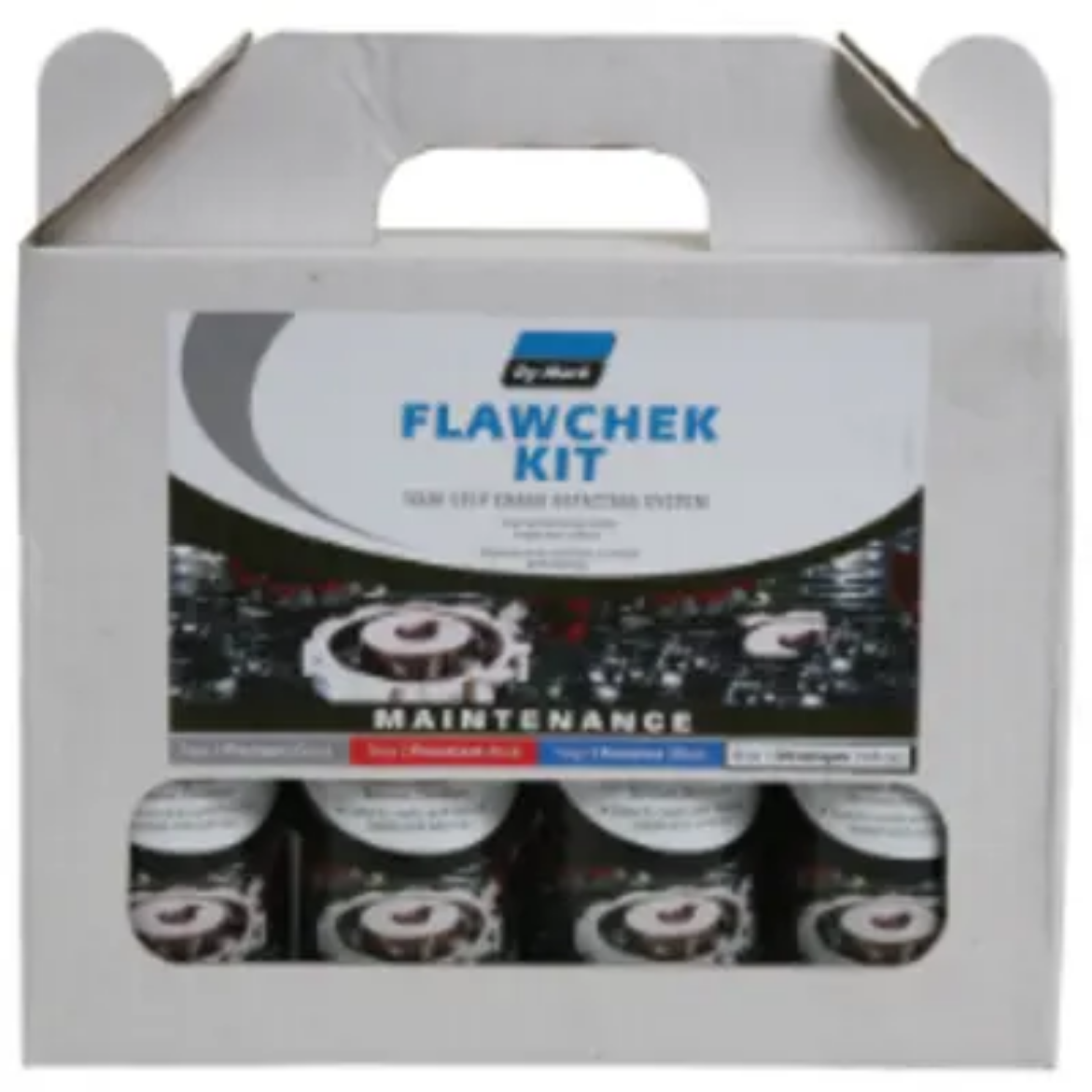

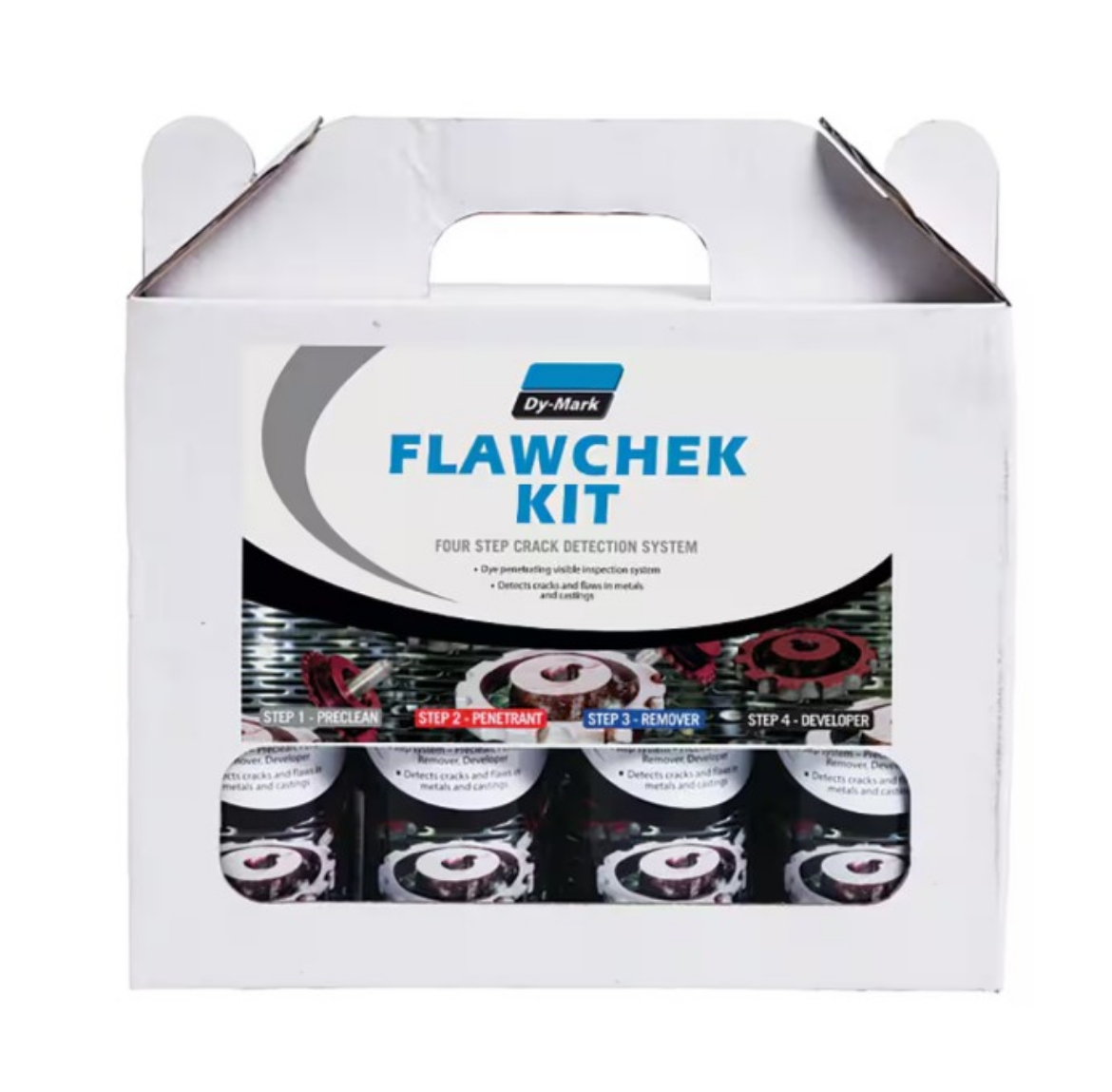

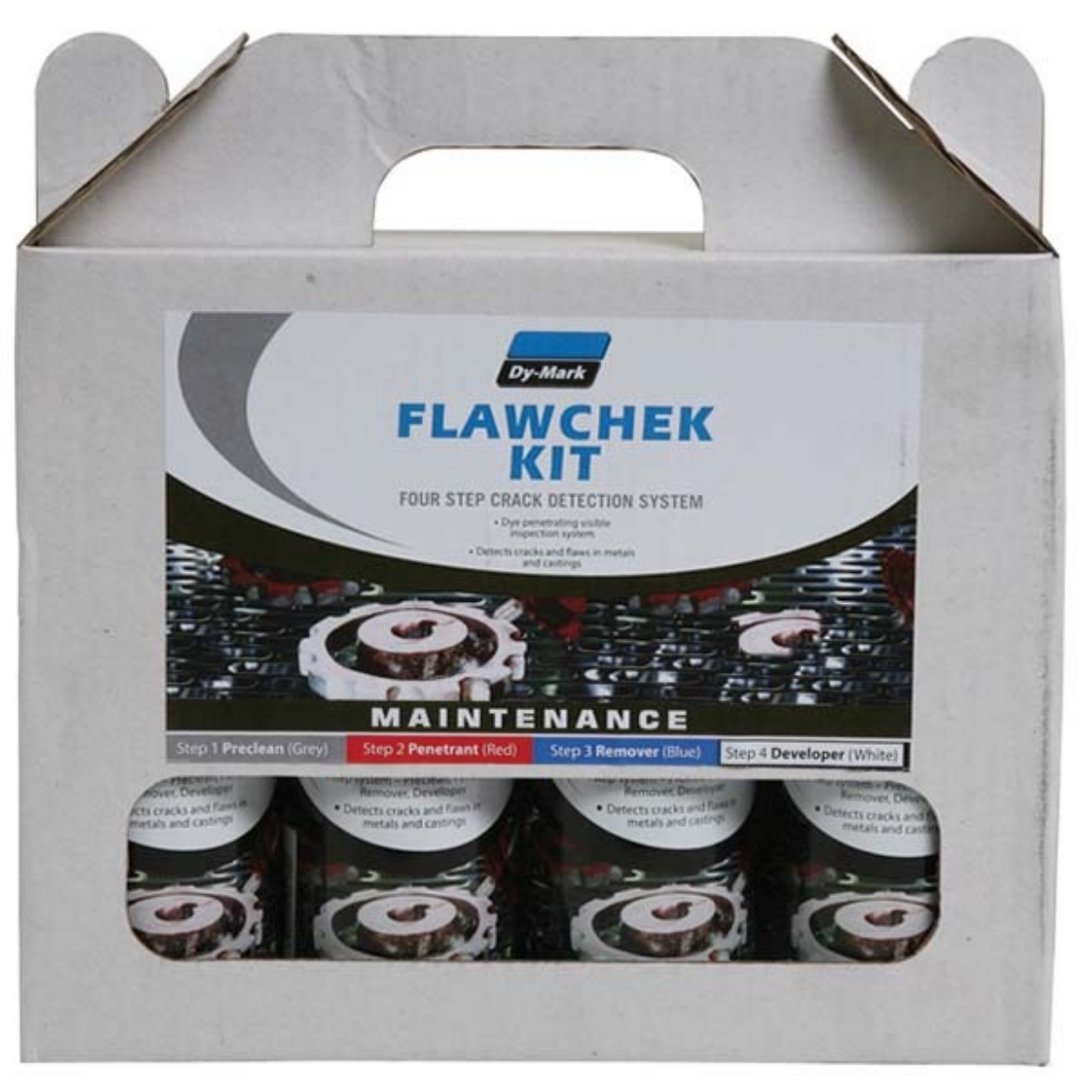

Flawchek "Crack Detection" System
Four-part visible "Crack Detection" inspection process

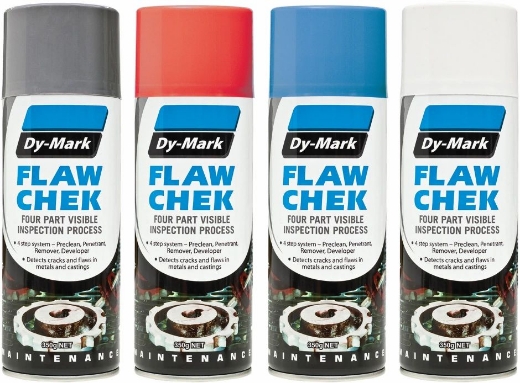

1 Kit containing 3 x 350g and 1 x 270g
- Dye penetrating visible inspection system
- 4-step system – Preclean, Penetrant, Remover and Developer
- Detects cracks and flaws in metals and castings
- Fast, efficient and cost effective method
- Conforms to AS2062 TYPE 2 METHOD C
About Flawcheck 4-Step System
Step 1 - Preclean (Grey)
- It is essential to ensure that the part/area to be tested a clean, dry and free from all surfaces contamination (e.g. grease, oil, rust and paint).
- Surface contaminants can cover a flaw, inhibiting the entrance of the dye.
- Spray the area to be inspected and wipe throughly with cloth.
- Allow clean surface to dry.
Step 2 - Penetrant (Red)
- Spray penetrant dye over the area that is to be inspected.
- Allow penetrant to dwell for 10 minutes.
- Dwell time should be extended in extremly cold conditions.
Step 3 - Remover (Blue)
- Allow excess Penetrant to drain.
- Wipe over inspected surface with a dry cloth.
- Then spray remover on another cloth and wipe surface to remove excess penetrant.
- Allow surface to dry before Developer.
Step 4 - Developer (White)
- Spray a light coat of the Developer over the area to be inspected, avoiding a heavy film.
- Leave Developer to dry and inspect parts of flaws after 2 -3 minutes.
- If very fine flaws are suspected, the parts should re-inspected after 20 minutes.
