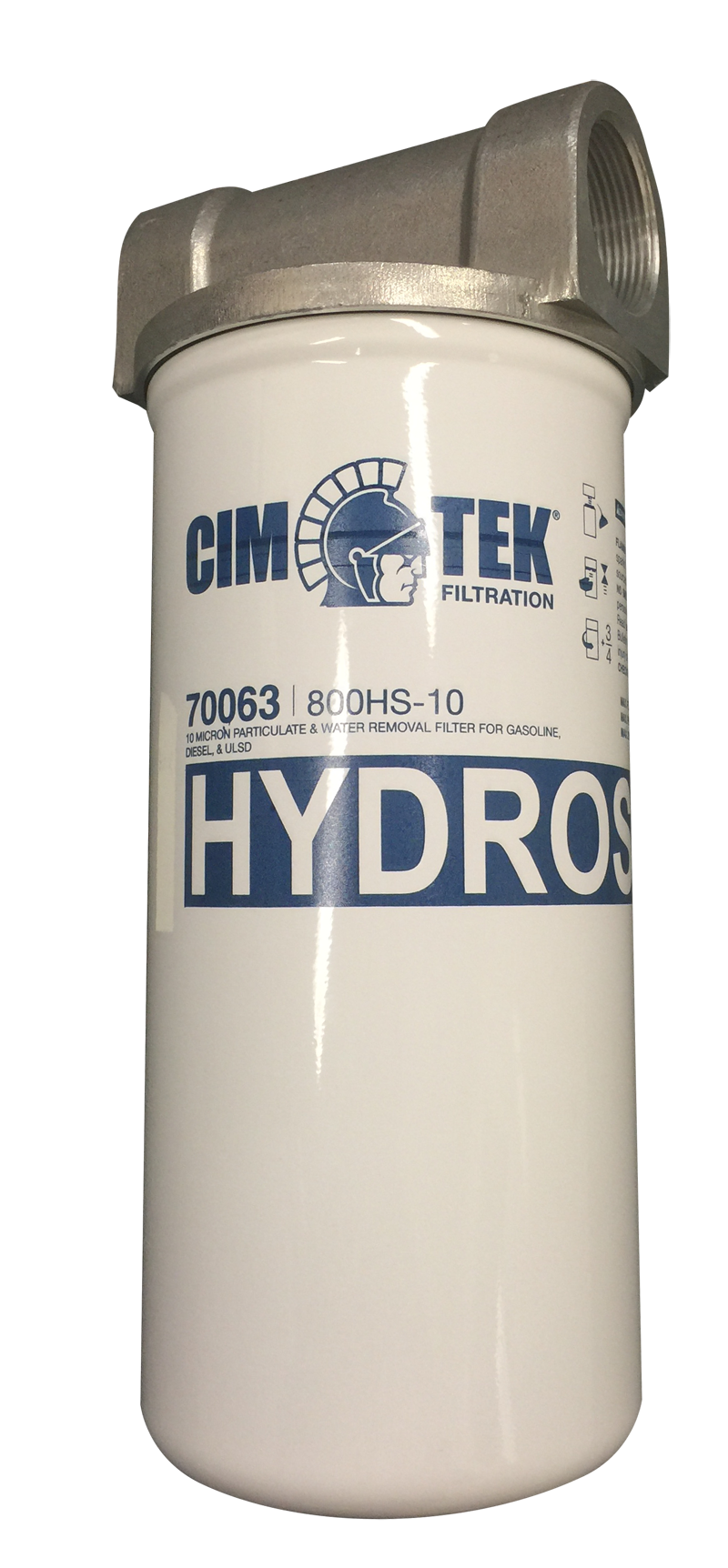

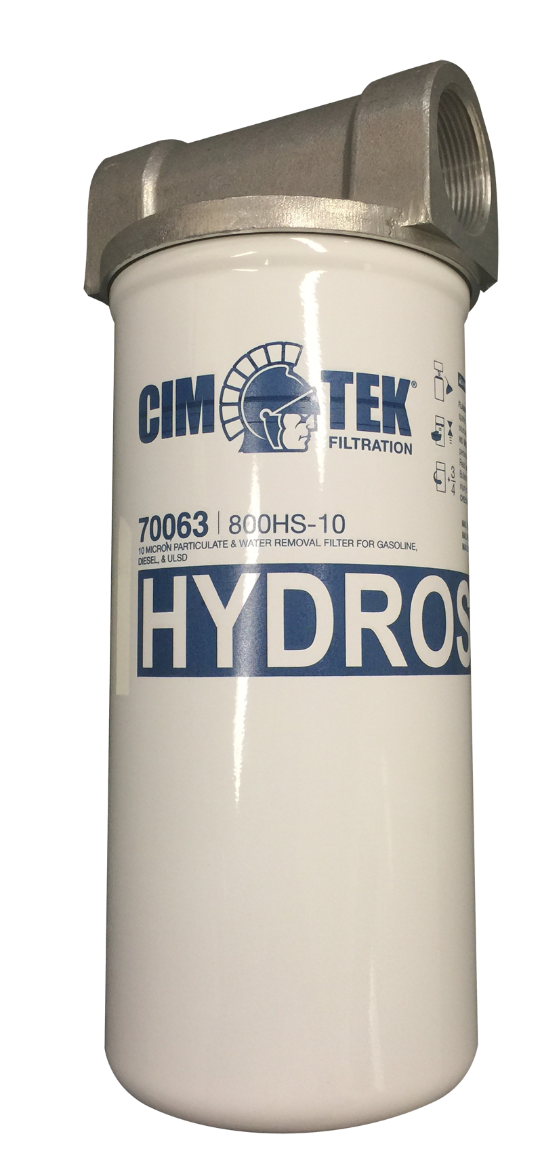

Fuel Filter Assembly, (c/w filter), 1 1/2", Element #70063 (Donaldson P574959) (EFHD-15010W) (suitable for Diesel and Petrol)

$407.00 Inc. GST

| Be the first to review this product

EACH

Availability: 1 in stock

Brand: Equipco

SKU: EFHD-15010W-40

increase decrease

Overview
Contact Us

10 micron aluminium canister element
1 1/2" female BSP inlet/outlet
Up to 50 PSI working pressure
Removable head
Replaceable element
For diesel, ULSD and petrol
Internal element absorbs any water in the fuel, and stores until full, which is to then be replaced.

Product dimensions: 150mmL x 150mmW x 390mmH
Replacement element: EFHD-15010W
Optional standard elements:
Bare canister: EFHD-15010
Full Assembly: EFHD-15010-40

Filter Element:

Filter Element Media: Hydrosorb
Filter Rating: 10 µm
Flow Rate (Max): 150 Litre/min
Operating Pressure (Max): 3.5 bar
Fits Adaptor: 50105, 50208
Thread: 1½"-16 UNF
Diameter: 129 mm
Length: 277 mm
Suitability: Diesel (EN590), Gas Oil (BS2869), Kerosene (BS2869), Petrol E10 (EN228), HVO (EN15940), GTL

Send us a message

Your name *

Your email *

Enquiry *

10 micron aluminium canister element
1 1/2" female BSP inlet/outlet
Up to 50 PSI working pressure
Removable head
Replaceable element
For diesel, ULSD and petrol
Internal element absorbs any water in the fuel, and stores until full, which is to then be replaced.

Product dimensions: 150mmL x 150mmW x 390mmH
Replacement element: EFHD-15010W
Optional standard elements:
Bare canister: EFHD-15010
Full Assembly: EFHD-15010-40

Filter Element:

Filter Element Media: Hydrosorb
Filter Rating: 10 µm
Flow Rate (Max): 150 Litre/min
Operating Pressure (Max): 3.5 bar
Fits Adaptor: 50105, 50208
Thread: 1½"-16 UNF
Diameter: 129 mm
Length: 277 mm
Suitability: Diesel (EN590), Gas Oil (BS2869), Kerosene (BS2869), Petrol E10 (EN228), HVO (EN15940), GTL
