Mini Relay 24V 40A 4 Pin NO Contacts Resistor Protected 9.5mm Terminals 30, 87

$19.82 Inc. GST

| Be the first to review this product

EACH

Availability: 2 in stock

SKU: R4-2480R

increase decrease

Overview
Contact Us

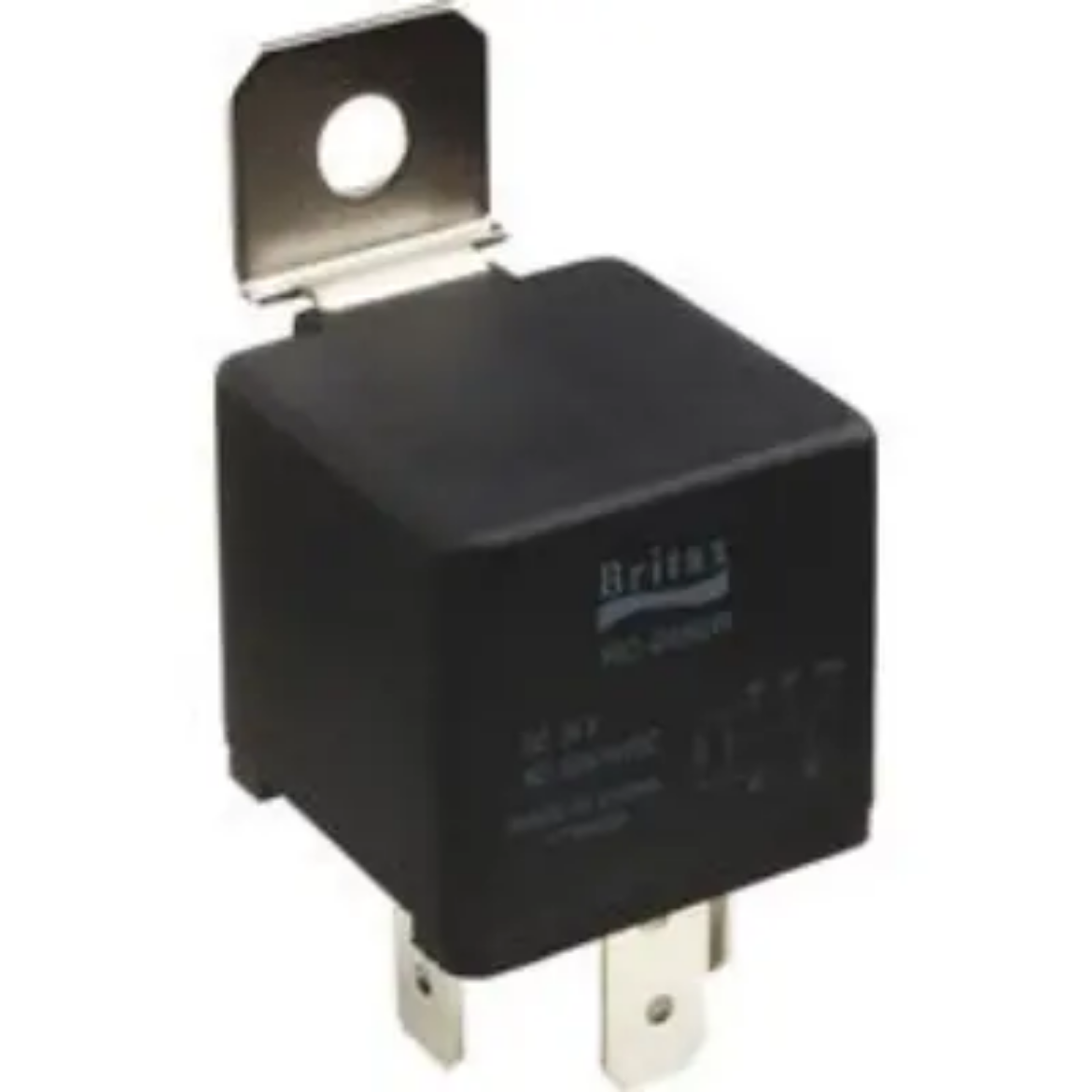

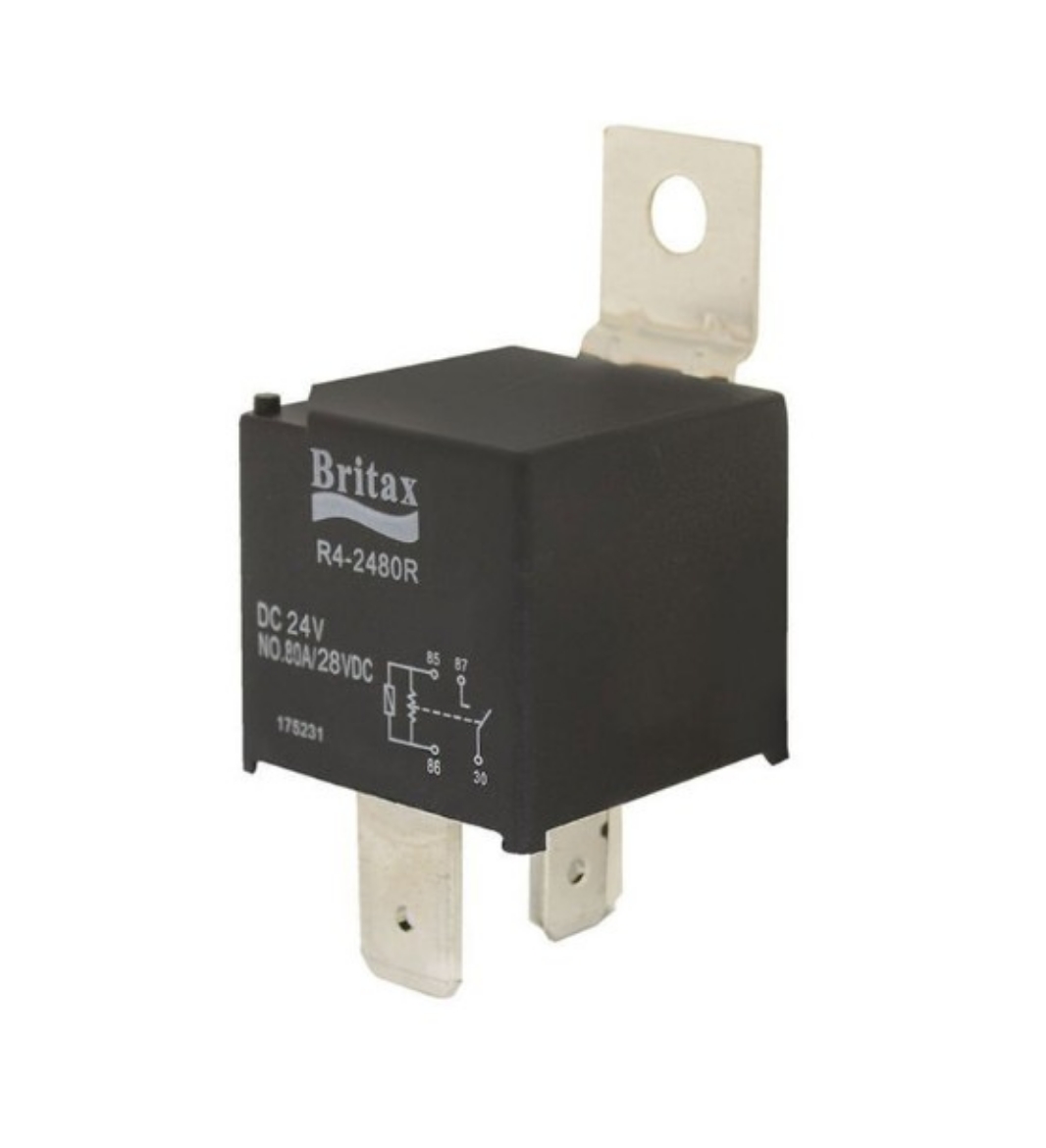

Britax Mini Relay 24V 40A 4 Pin N/O Contacts SPST 9.5mm Resistor Protected

Sealed Relay with IP67 Rating.
Contacts: Silver AgSnO2
Approvals: ISO9001; QS9000; ISO/TS16949 and ISO14001; CE; UL; CSA and TUV
Terminal Material: Zinc Plated
Protection: Resistor

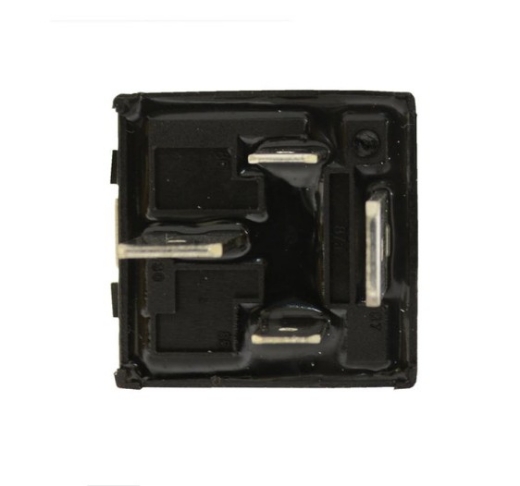

Terminal Dimensions: 2 x 6.3mm; 2 x 9.5mm
Voltage: 24V
Mounting Bracket: Removable metal bracket
Dimensions: 26.5(H) x 29(D) x 29(W)mm
Amperage: 40A
Coil Power Consumption: 1.8W
Type: SPST N/O
Terminals: 4 Pin

Send us a message

Your name *

Your email *

Enquiry *

Britax Mini Relay 24V 40A 4 Pin N/O Contacts SPST 9.5mm Resistor Protected

Sealed Relay with IP67 Rating.
Contacts: Silver AgSnO2
Approvals: ISO9001; QS9000; ISO/TS16949 and ISO14001; CE; UL; CSA and TUV
Terminal Material: Zinc Plated
Protection: Resistor
Terminal Dimensions: 2 x 6.3mm; 2 x 9.5mm
Voltage: 24V
Mounting Bracket: Removable metal bracket
Dimensions: 26.5(H) x 29(D) x 29(W)mm
Amperage: 40A
Coil Power Consumption: 1.8W
Type: SPST N/O
Terminals: 4 Pin
