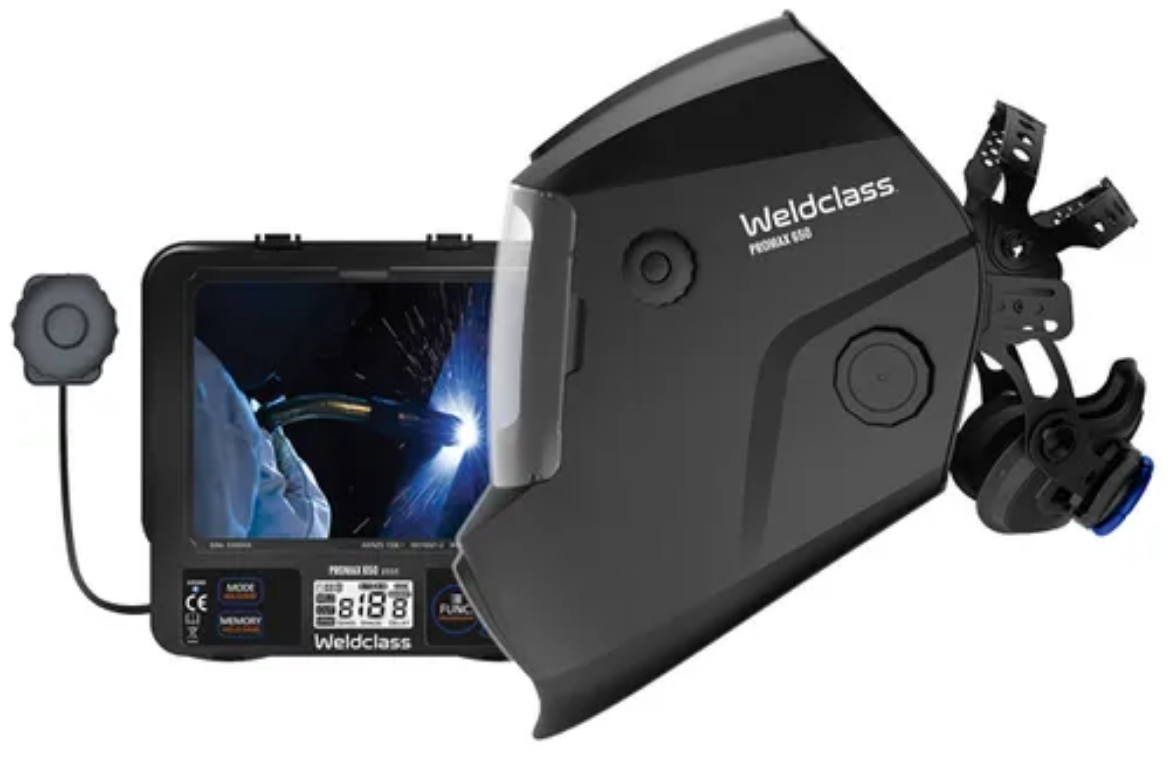

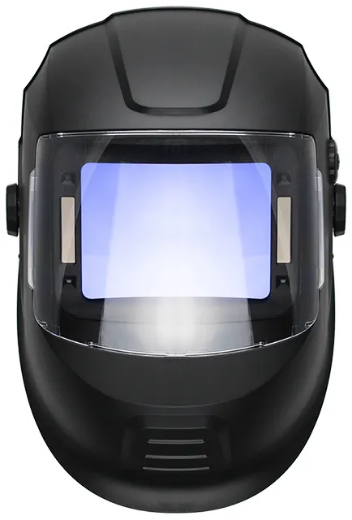

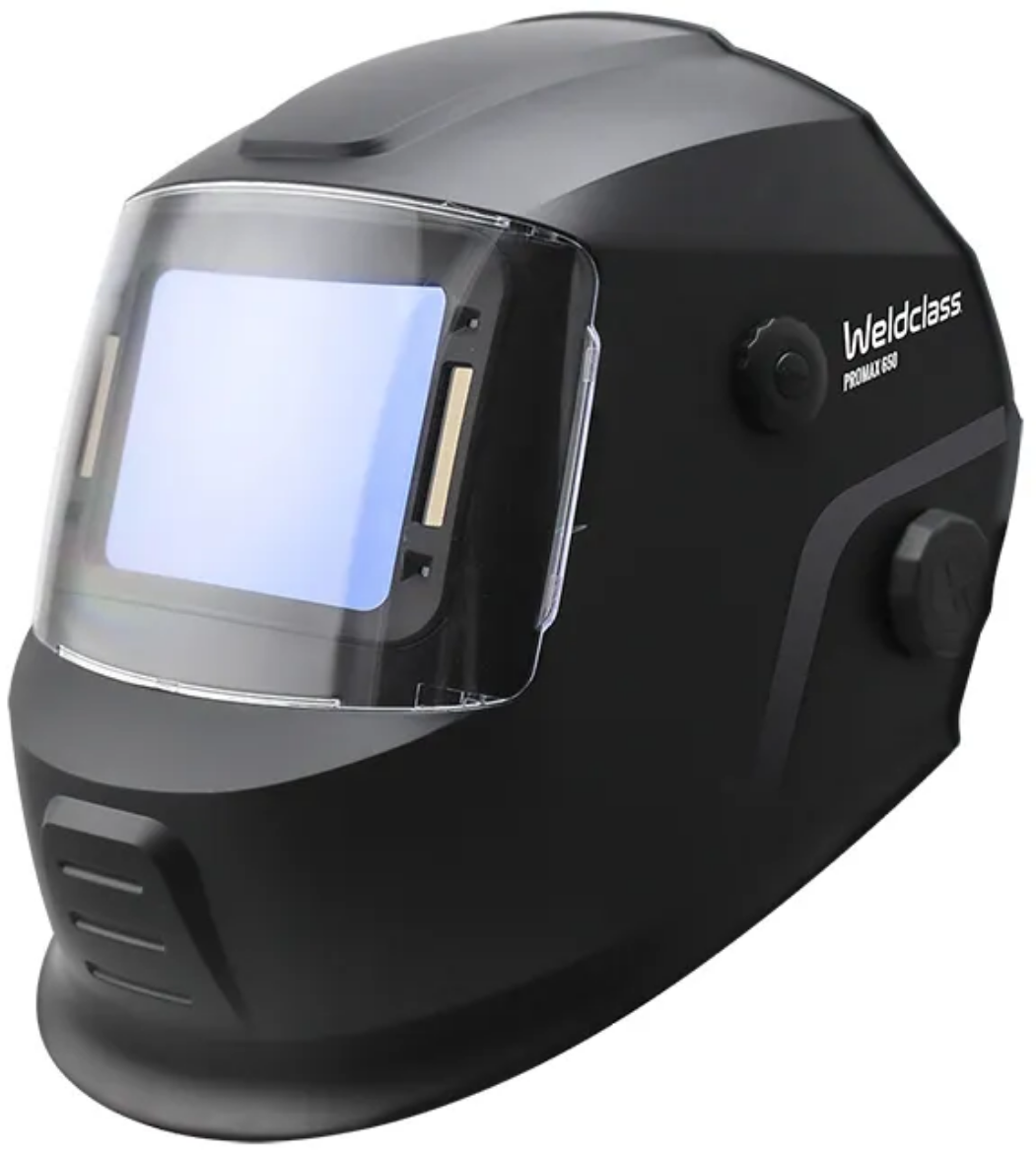

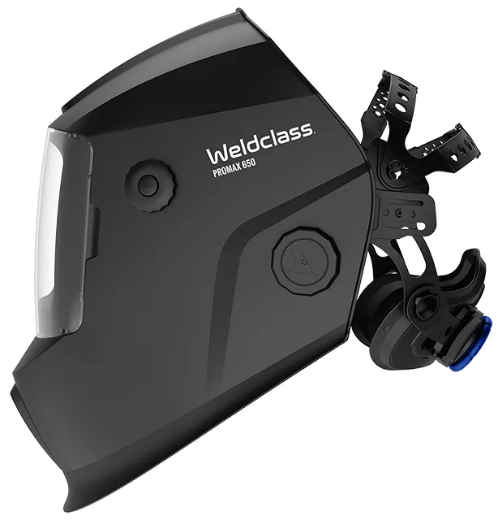

Welding Helmets - PROMAX 650

Key Features:

• 7-year Warranty*
• Super-Size 89cm² viewing area
• 'Landscape' 108mm wide x 82mm high window/screen format for wider & more natural field of view
• Ultra-Crisp V1 (1/1/1/1) rated optics with enhanced color recognition
• Advanced digital controls with memory, cut mode, gradient & other functions
• External grind button for instant & easy switching between welding & grind modes without removing or lifting helmet
• Super-comfortable, wrap-around headgear with molded rear pressure pad
• Lightweight (580g), up to 15% lighter than other digital wide-view helmets

 Application Information:

• MIG welding
• Stick welding
• TIG welding down to 5 amps
• Grinding
• Plasma Cutting
• Oxy Cutting, Brazing, Heating
• Gouging

Functions:

• Welding mode: Variable shade 9-14
• Cut mode: Variable shade 4-8
• Grind mode: Locks lens to light mode (shade 3), switch on/off via external button or internal controls
• Shade Lock: Switches off auto-darkening function & locks lens to a selected shade level (4-13), ideal for oxy cutting & similar processes where conditions may not be ideal for normal auto-darkening function
• Memory: Save up to 10 favorite settings (recalls shade, sensitivity & delay settings)
• Delay: Adjustable 0.1-1.0s (switching time from dark back to light after welding arc stops)
• Gradient Mode: Gradual return (slope down) from dark to light, mirrors cooling of the weld pool to reduce eye strain
• Sensitivity: Adjustable 0-9 settings

Other Features:

• High-Impact tested and rated to Australian standard AS1337.1
• Auto-darkening lens complies with AS1338.1
• Easy cover lens replacement
• Magnification lens holder - takes standard magnification lenses
• Reliable Power Source: Replaceable battery plus solar assist, efficient electronics for low power consumption
• Full-Laminate Lens Construction: Each layer in the electronic lens assembly is firmly laminated for superior optical quality and long service life. This is in contrast to cheaper lenses which are simply glued on the edge and, over time, are prone to contamination and failure.
• Lightweight, Durable and Shock Resistant shell
• Weight: 580g
• Auto-on & Auto-off = No buttons to press, Hassle-Free operation

Warranty:

• *Standard warranty 2 years, with extended 7 year warranty available with registration after purchase (on auto darkening lens/cassette)
