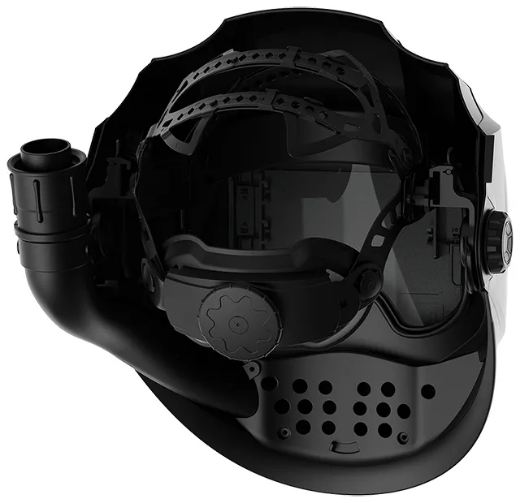

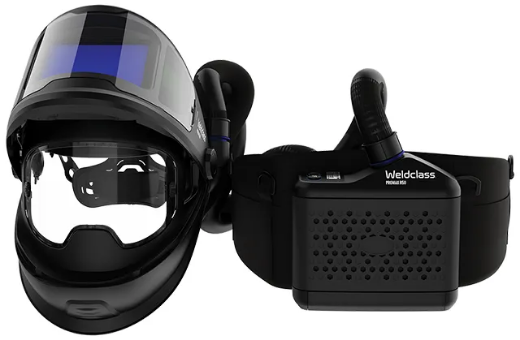

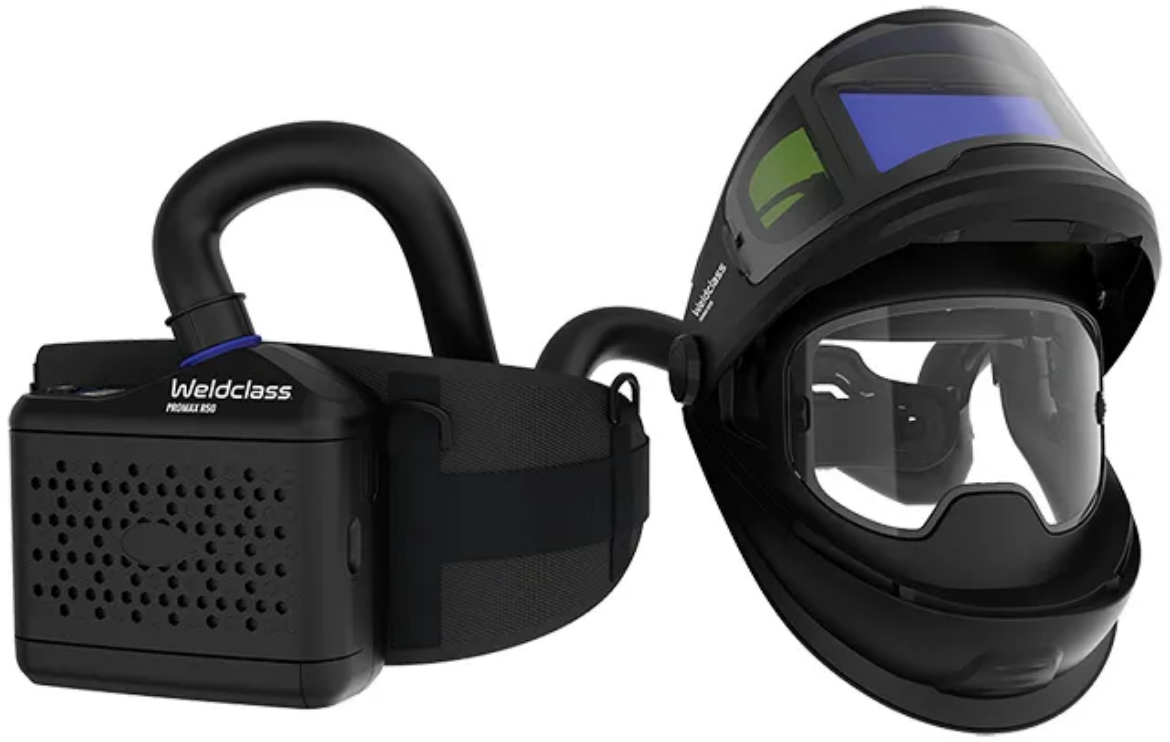

Welding Helmet PROMAX 850R with PAPR Respirator

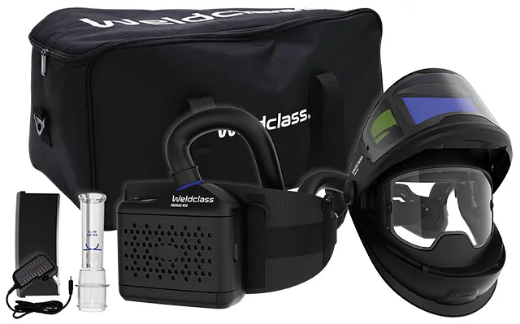

Package Includes:

• PROMAX 850R PAPR Helmet
• PROMAX R50 PAPR Respirator blower unit with battery
• Bonus 2nd battery
• Battery charger

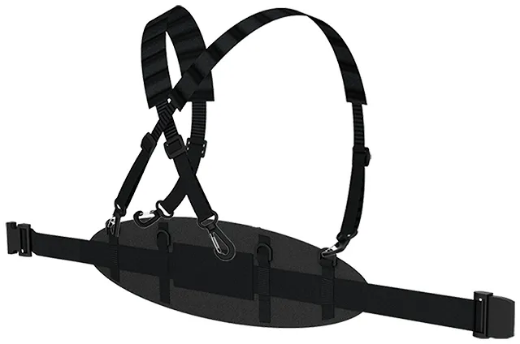

• Waist & shoulder belt/harness
• Hose with FR cover
• Clear lens starter pack
• Air flow meter / tester
• Heavy-duty carry bag

PROMAX 850R Helmet Features:

• 7-year Warranty offer (on electronic lens)*
• Enormous 95cm² viewing area through auto-darkening lens
• Flip-Up welding lens with wide-view clear grinding visor
• Side windows (shade 5) for enhanced peripheral vision
• Front cover lens covers / protects both the welding lens and shade 5 side windows
• 'Landscape' format (116mm wide x 82mm high) auto-darkening window for wider & more natural field of view
• Ultra-Crisp V1 (1/1/1/1) rated optics with enhanced colour recognition
• Illuminated digital LCD display/controls for superior visibility (auto dims when adjustments are not being made)
• Advanced digital controls with memory, cut mode, gradient & other functions
• Auto Controls: Option of Manual (user adjusts), or Auto shade / Sensitivity / Delay adjustment (settings adjust automatically depending on arc intensity)
• Super-comfortable, wrap-a-round headgear with moulded rear pressure pad
• Easy cover lens replacement
• Magnification lens holder - takes standard magnification lenses
• Super-comfortable, wrap-a-round headgear with moulded rear pressure pad
• High-Impact tested and compliant to Australian standard AS/NZS 1337.1
• Auto-darkening lens complies with AS/NZS 1338.1
• Reliable Power Source: Replaceable batteries plus solar assist, efficient electronics for low power consumption
• Full-Laminate Lens Construction: Each layer in the electronic lens assembly is firmly laminated for superior optical quality and long service life. This is in contrast to cheaper lenses which are simply glued on the edge and, over time, are prone to contamination and failure.
• Auto-on & Auto-off = No buttons to press, hassle-free operation
• Weight: Helmet only 940g / Helmet with respirator 1.87kg

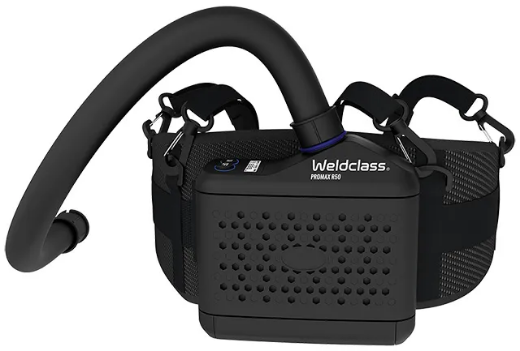

 PROMAX R50 PAPR Respirator Features:

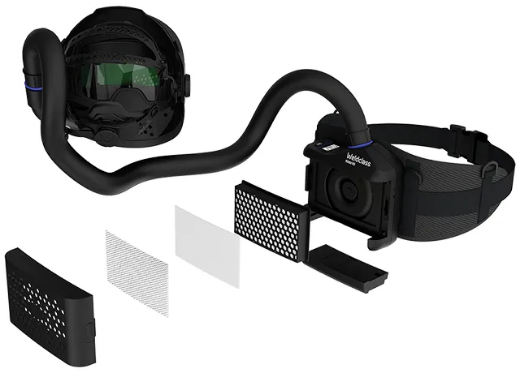

• 3-Stage filter system includes main particle filter, prefilter, and spark filter
• TH3 filter class, delivering ≥99.8% air particle purity
• TH3 (P3) grade main filter, designed to protect against welding fume particulate matter, and solid or liquid aerosols**
• Carbon prefilter supplied as standard, removes nuisance level odours
• Audio, visual and vibration alert for filter replacement or airway restriction
• 3 air flow speeds: 170, 200, 230 L/min
• 4-Point waist and shoulder harness (shoulder harness is removable to allow use with waist hardness only)
• Li-ion battery delivers operating time of ≥10 hours @ 170 L/min (≥6 hours @ 230 L/min)
• Warranty: 2 years on blower unit, 1 year on battery
• Complies with AS/NZS 1716
• Weight: Respirator (with blower unit & hose) only 930g / Helmet with respirator 1.87kg

Applications:

• MIG welding
• Stick welding
• TIG welding down to 5 amps
• Grinding
• Plasma Cutting
• Oxy Cutting, Brazing, Heating
• Gouging

Functions:

• Shade adjustment: Auto (shade level adjusts automatically depending on arc intensity) or Manual (user adjusts), adjust in increments of +/- 0.5
• Shade Deviation: When using Auto shade, +/- deviation (fine adjustment) can be adjusted in 0.1 increments to up +2.0/-2.0
• Welding mode: Variable shade 9-14
• Cut mode: Variable shade 4-8
• Shade Lock: Switches off auto-darkening function & locks lens to a selected shade level (4-13), ideal for oxy cutting & similiar processes where conditions may not be ideal for normal auto-darkening function
• Memory: Save up to 9 favourite settings (recalls shade, sensitivity & delay settings), with ‘instant save’ function on external controls
• Delay (switching time from dark back to light after welding stops): Auto or Manual 0.1-1.0s
• Gradient Mode: Gradual return (slope down) from dark to light, mirrors cooling of the weld pool to reduce eye strain
• Sensitivity: Auto or Manual 0-9 settings
• Tack Mode: Returns to shade 5 (instead of shade 3) between welds to reduce fatigue
• Respirator airflow speed adjustment: 170, 200, 230 L/min

Warranty:

• *Standard warranty 2 years, with extended 7 year warranty available with registration after purchase (on auto darkening lens/cassette)
• **TH3 (P3) class filters do NOT provide protection against toxic particles or gaseous substances (gas).
