Regulator - Nitrogen 28,000 Kpa

Key Features:

• 7-Year Warranty*
• Heavy-duty Platinum series
• Piston-sensing for smooth & reliable pressure adjustment

 Pressure Capacity:

• Max Delivery: 28,000KPa / 280 bar / 4,000psi
• Max Inlet (cylinder pressure): 40Mpa / 40,000Kpa / 400 bar / 5,800psi

 Connections:

• Outlet: 1/4 Flare (JIC 37° Flare Fitting) with thread size 7/16-20 (= approx 11.1mm O.D.)*
  *Note: Australian Standards does not permit use of 5/8" UNF outlet on regulators exceeding 2,000 kpa output

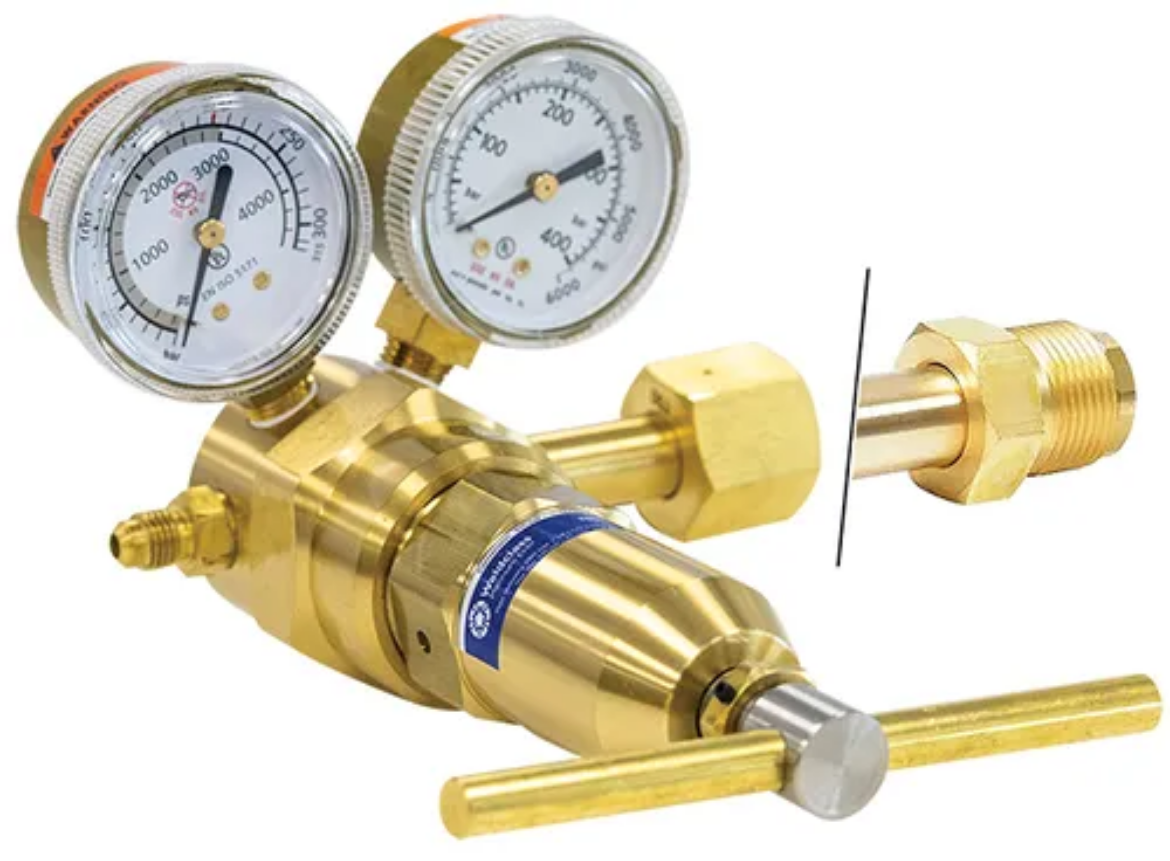

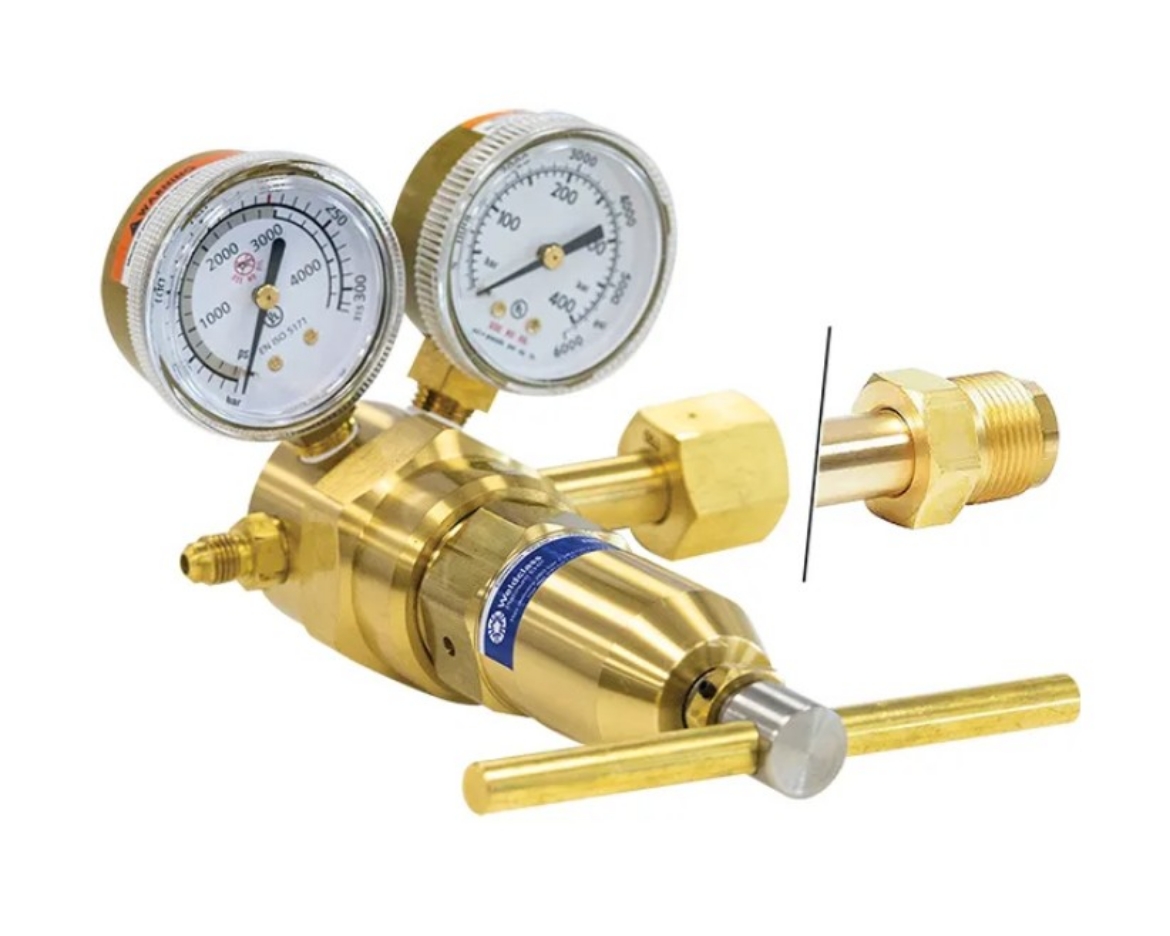

• Inlet - Fitted to regulator: Type 50 (W24x2 14 TPI RH Female nut)
• Inlet - Supplied with regulator as an additional part: Type 51 (1.045" NGO 14 TPI RH Male nut with spigot), can be used if regulator will be fitted to EHP (extra high pressure) cylinders
• Port (inlet & outlet port hole in regulator body): 1/4" NPT (tapered)

 Other Specifications:

• Flow Coefficient Value: Cv 0.11 / Kv 0.095
• Operating (ambient) temperature range: -20°c - +60°c

Spare Parts:

• Spigot and Nut Kit T50 & T51: WC-01604
• Inlet (high pressure) gauge 0-40,000kpa: WC-01648
• Outlet (low pressure) gauge 0-30,000kpa: P4-HPARG
• O-ring for Type 50 spigot: Available for most bearing supply retailers, size ID 7.65 x OD 11.21 x Dia 1.78mm (ID 5/16 x OD 7/16 x Dia 1/16")

 Warranty:

• *Standard warranty 12 months, with extended 7 year warranty available if registered online after purchase.
