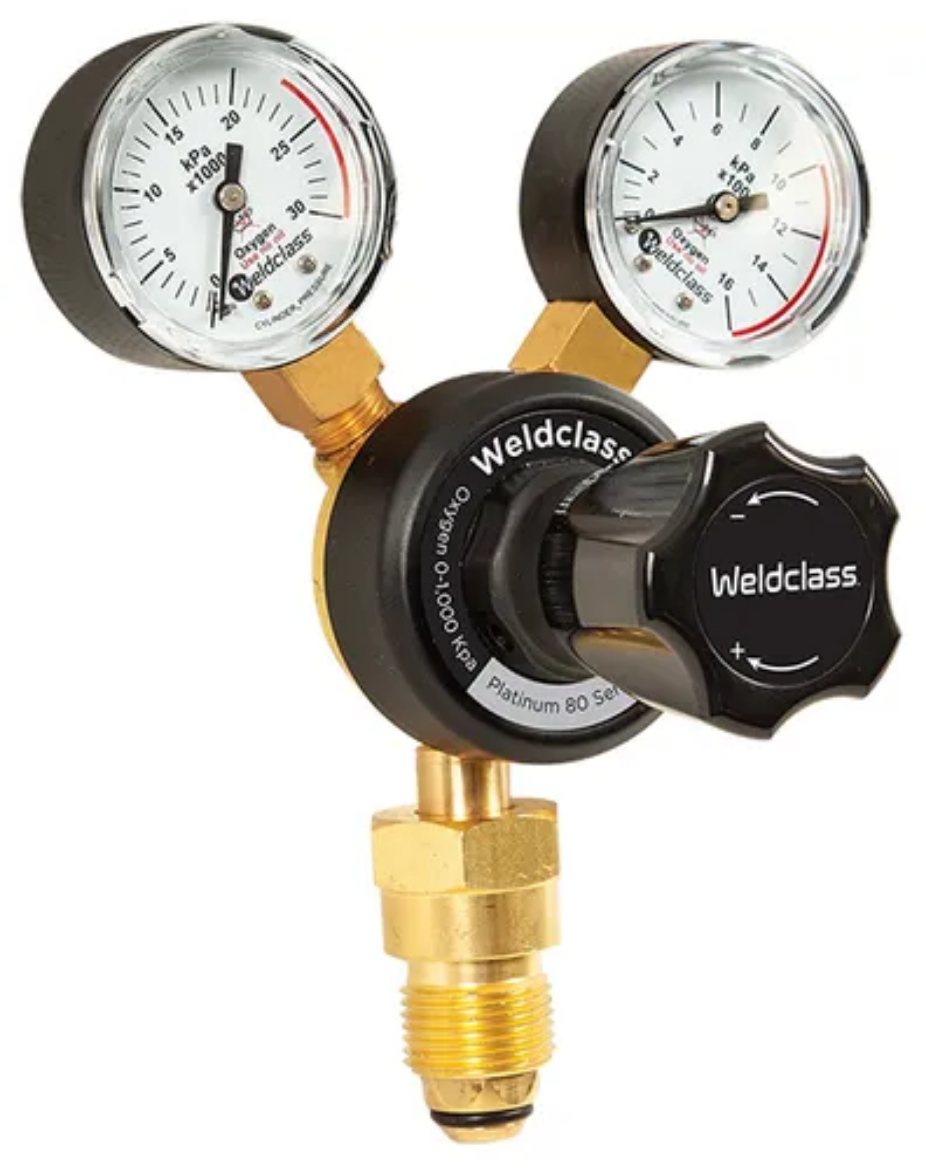

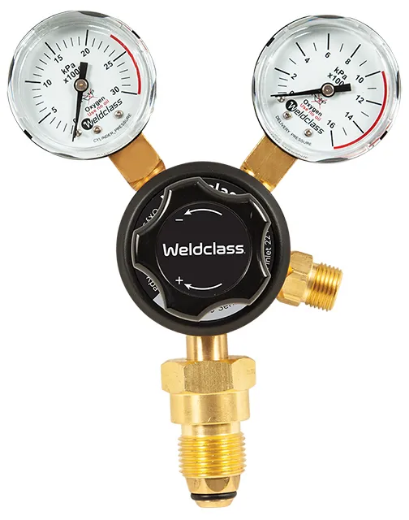

Regulators - PLATINUM Oxygen

Key Features:

• 7-Year Warranty offer*
• Internal pressure relief safety valve*
• One-piece encapsulated seat
• Heavy-duty Platinum series, no quality shortcuts
• Proven reliability
• Complies with AS4267
• Spare parts available

 Specifications & Application Information:

• Suitable for oxygen gases
• Output: 0-1,000 kpa
• Inlet / cylinder connection:  AS2473 Type 10
• Outlet connection: 5/8" UNF Male RH

 Internal Pressure Relief Valve:

• Risk of over-pressurisation of the regulator body is a safety hazard when using high pressure gas (such as oxygen or argon/CO2) and can cause rupture / explosion of the regulator and or components
• The pressure relief valve prevents over-pressurisation
• Valve is built into regulator body internal parts, protecting it from contamination, damage or tampering, to ensure reliable operation

One-Piece Encapsulated Seat/Valve:

• Provides better performance and reliability vs traditional seat designs
• Sintered filter ensures microscopic particles don't enter the capsule, for longer life
• Lateral (instead of direct / linear) gas flow protects diaphragm from wear & rupture
• increased valve surface area minimises flow restrictions and pressure drops
• Reduced pressure creep (tendency for regulator output pressure & flow to increase as the bottle pressure reduces)
• Smoother, more consistent and reliable gas delivery flow & pressure
• Improves weld quality and reduces troubleshooting issues caused / exacerbated by inconsistent gas delivery

Compliance & QC:

• Regulator complies with AS 4267
• Pressure gauges comply with Australian standards AS 1349 & ISO 5171
• Inlet connections comply with AS 2473 & ISO 5145
• Manufactured under ISO-9001 certified quality system
• Each regulator factory tested for leak tightness & correct operation at max working pressure
• Each regulator stamped to indiciate month & year of manufacture & QC test

 Warranty:

• *Standard warranty 12 months, with extended 7 year warranty available if registered online after purchase
