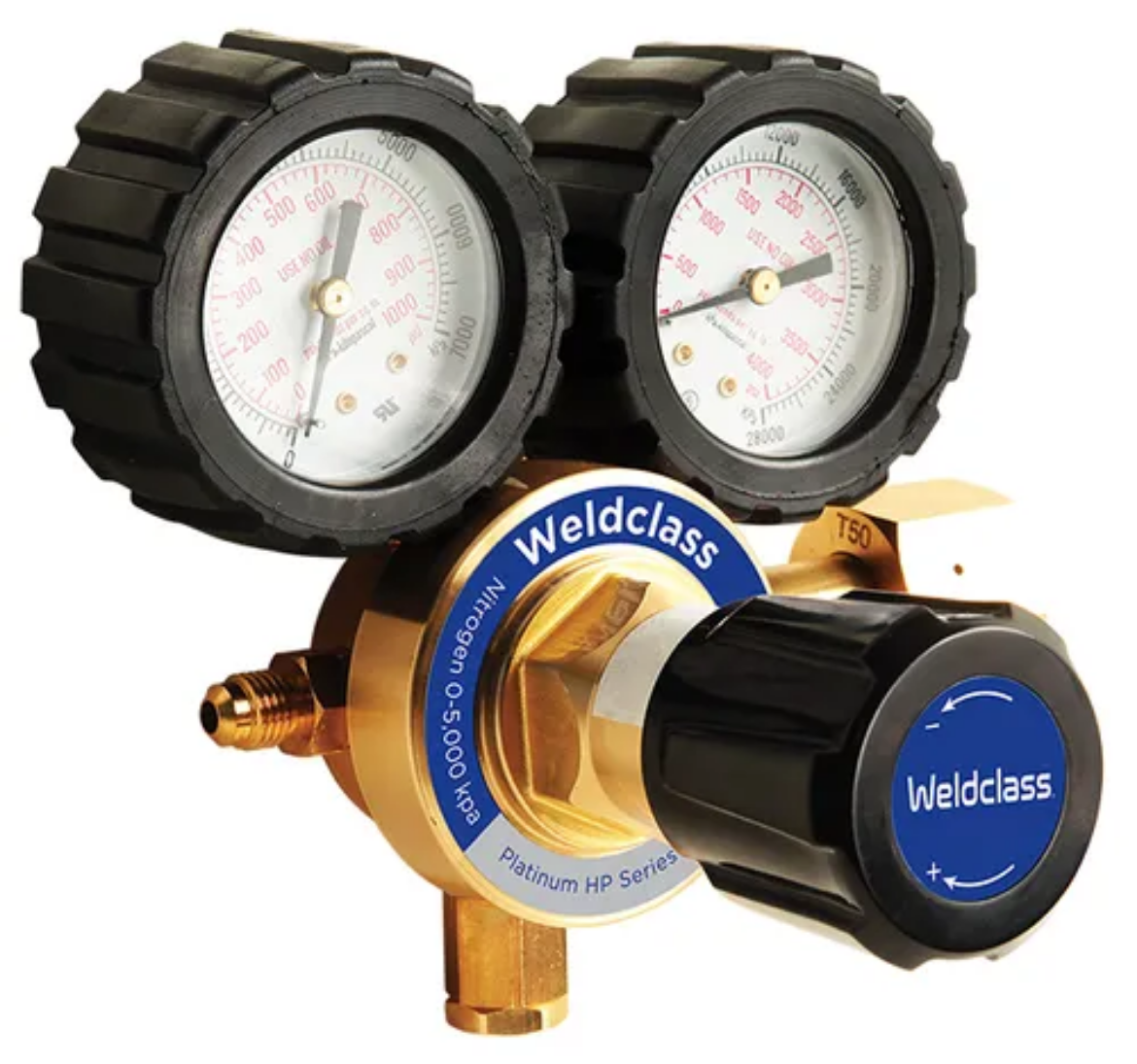

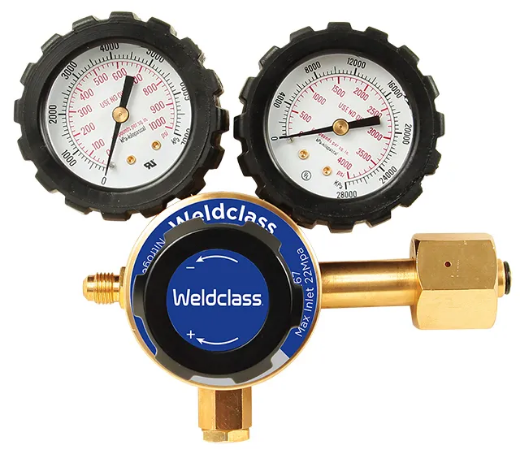

Regulator - Nitrogen 5,000 Kpa

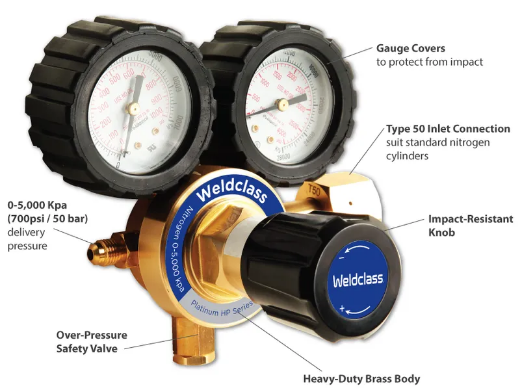

Key Features:

• 7-Year Warranty*
• Heavy-duty Platinum series
• Rubber gauge covers protect gauges from impact
• Commonly used for HVAC (heating & air conditioning) pressure testing

Pressure Capacity:

• Max Output (delivery pressure): 5,000KPa / 50 bar / 700psi
• Max Inlet (cylinder pressure): 22Mpa / 22,000Kpa / 220 bar / 3,190psi

 Connections:

• Outlet: "1/4 Flare" (JIC 37° Flare Fitting) with thread size / O.D. 7/16-20 (= approx 11.1mm)*
  *Note: Australian Standards does not permit use of 5/8" UNF outlet on regulators exceeding 2,000 kpa output
• Inlet: Type 50 (W24x2 14 TPI RH Female nut)
• Port (inlet & outlet port hole in regulator body): 1/4" NPT (tapered)

Other Specifications:

• Operating (ambient) temperature range: -20°c - +60°c

Spare Parts:

• Spigot and Nut Kit: WC-01604
• Inlet (high pressure) gauge 0-30,000kpa: P4-HPARG
• Outlet (low pressure) gauge 0-7,000kpa: WC-01738
• O-ring for Type 50 spigot: Available for most bearing supply retailers, size ID 7.65 x OD 11.21 x Dia 1.78mm (ID 5/16 x OD 7/16 x Dia 1/16")

 Warranty:

• *Standard warranty 12 months, with extended 7 year warranty available if registered online after purchase.
